SLIDING SYSTEM

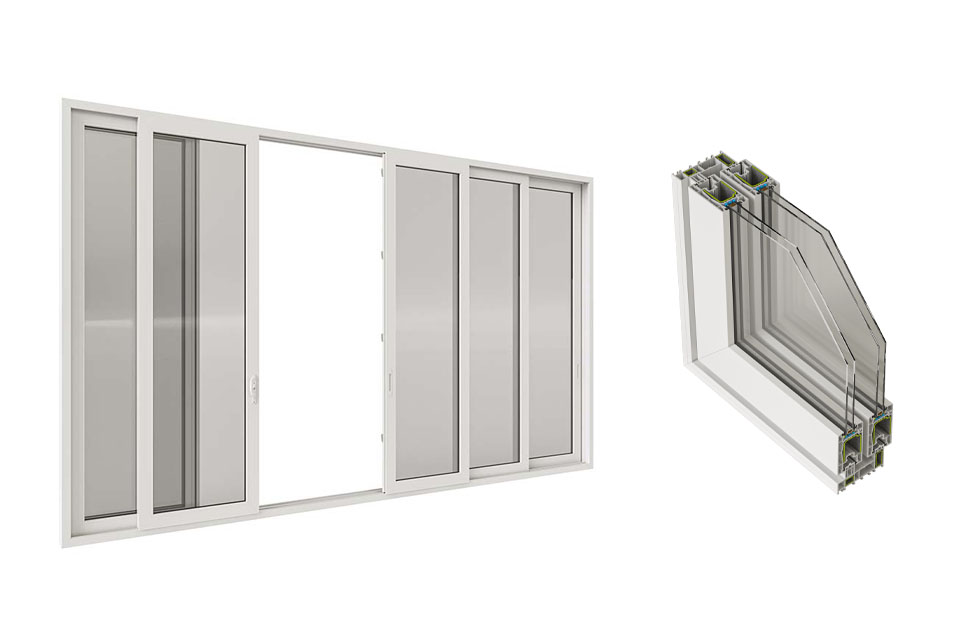

JUMBO Line
The TECNOPERFILES Jumbo Line is one of the most sophisticated and innovative opening models manufactured by the company.
It is a system of sliding PVC openings for large dimensions and capacities that stands out for being efficient and competitive in cost/benefit, for its resistance, durability, and design since, thanks to its innovative system of frame attachable guides, openings can be manufactured with up to six mobile and/or fixed leaves, and in turn multiple guides can be added. This allows it to generate large lights that interact with the outside, with impressive visuals that reach up to three meters high, (the highest window in the Argentine market).
The JUMBO line, in turn, has internal galvanized steel reinforcement, which allows it to be glazed with single or double laminated glass and thermopanels up to 34 mm thick, and support 280kg sheets, with the additional possibility of including PVC mosquito nets.
With reinforcements of greater inertia, which guarantee optimum functionality and performance, the JUMBO opening has an optimized system of hidden joints and drains; with great efficiency in assembly, maximum thermoacoustic insulation, hermeticity, long useful life and watertightness, promoting consequent savings in energy consumption and in the use of non-renewable energy sources.
In 2021, the JUMBO Line received the Seal of Good Argentine Design by the Ministry of Productive Development of the Argentine Nation thanks to the multiple technical solutions it provides and its avant-garde design in line with world trends in architecture, where homes with large spans are projected , which seek to integrate interior and exterior with the maximum use of natural light.

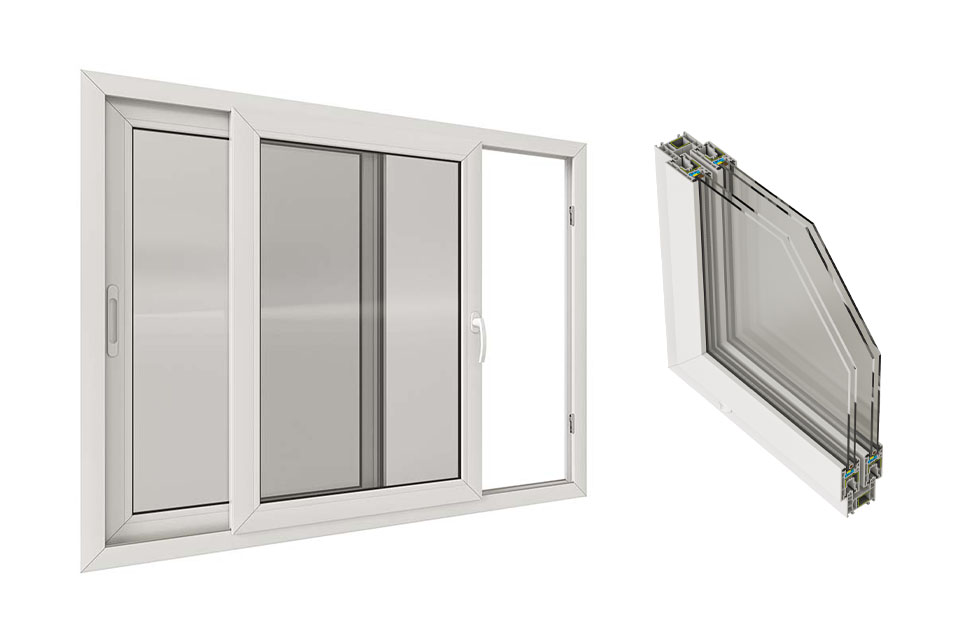

ADVANCE Line
With Austrian tooling, this carpentry system offers optimal cost-benefit.
It can couple 2,3,4, up to 6 mobile leaves, with standard hardware system, allowing single and double glazing up to 20 mm thick.
With aluminum guides, a hidden drainage system and a meeting system, the Advance Line offers great thermal and acoustic insulation, with low maintenance and a useful life of more than 50 years.

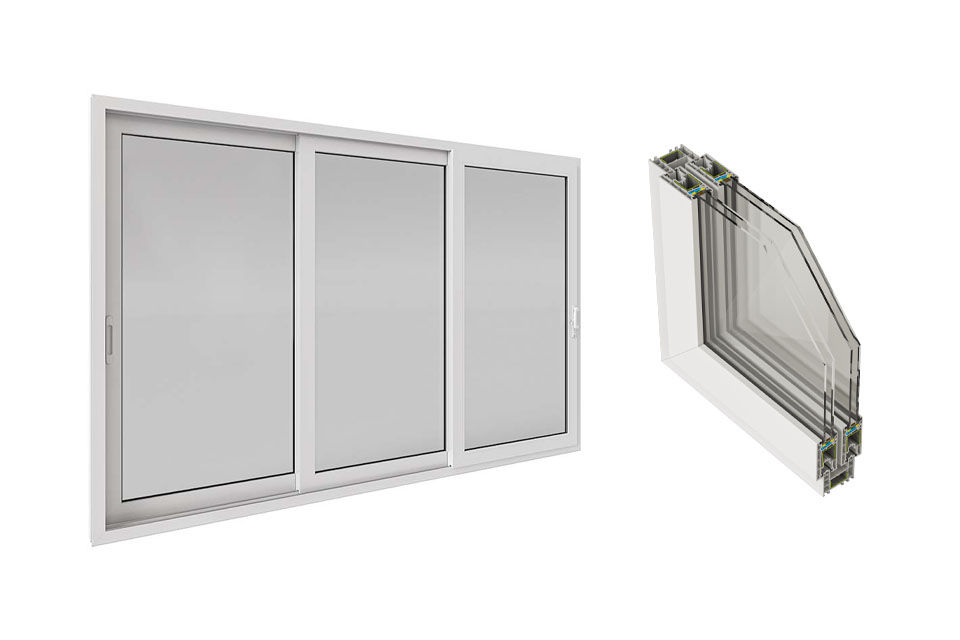

PRIME Line
The Prime Line sliding system, with Austrian tooling, allows the use of aluminum thresholds and can reach heights of up to 2.3 metres.
This line is suitable for 2,3,4 and 6 mobile leaves, with a standard hardware system, allowing single and double glazing up to 24 mm thick.
With aluminum guides, a new hidden drainage system and a new meeting system.
DOUBLE CONTACT SYSTEM

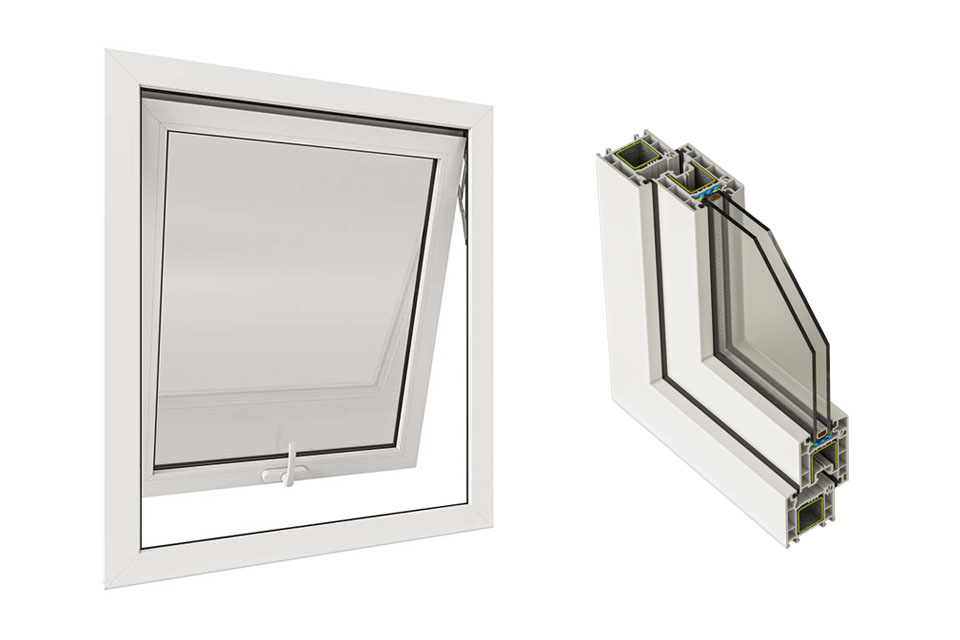

EFFICIENT LINE:
58-100 series / 58-69 series / 58-85 series
The Double Contact system is the most complex and includes a hinged, tilt-and-turn system with a double opening possibility, banner and projecting system in all series, all these systems can have 2 leaves. They accept Fixed Cloth (by post) and Mosquito Net.
The frames and leaves have galvanized iron reinforcements and an external and internal EPDM sealing gasket on the leaf and perimeter sealed frame.

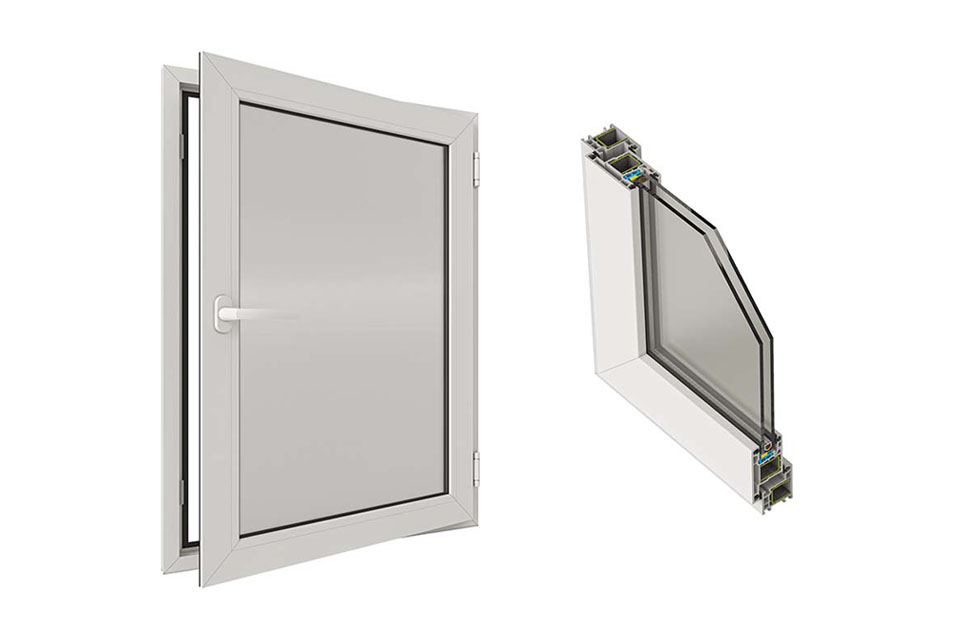

ECOLIFE LINE
Highly efficient in assembly, maximum thermoacoustic insulation, airtightness and watertightness with coextruded weather stripping, it is ideal for.
It offers both interior and exterior opening, with galvanized steel reinforcements and greater rigidity to wind load, accepting single and double glazing up to 20 mm thick.
